Battery Powered Vacuum Glass Lifting Device For Flat Arc Or Curved Surface Glass

Name: Battery Powered Vacuum Glass Lifting Device For Flat Arc Or Curved Surface Glass
Brand: HESHAN
Price: 2000 USD

China Battery Powered Vacuum Glass Lifting Device For Flat Arc Or Curved Surface Glass wholesale

Brand Name : HESHAN

Model Number : VGL

Certification : CE,ISO,SGS,ROHS

Place of Origin : China

MOQ : 1 set

Price : USD 2000~USD 10000

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 10000 set per year

Delivery Time : 15-25 work days

Packaging Details : Export packing cases

Application : Building glass, Glass Puller/Lifter/Gripper/Dent Puller, etc, Industry, move glass,metal plates,stone slabs,Plastic sheet

Function : Transfer, lifter, loading glass, Multi Functional, Glasss lifter machine

Load Capacity : 300kg,400kg,500kg,600kg,800kg

Usage : glass lifter, Glass lifing moving, glass move, etc, Glass Clamp

After-sales service provided : Free spare parts, Online support

Voltage : 110v 220v 230v 240v Optional,According to local voltage

Warranty : 2 Years

Performance : Rotate and flip 90 degree, handing process, Rotation 0-90 degree and lifting 600-1200mm

Oem/odm : available, yes

Color : Golden, Picture, Customizable, customer-made, Yellow

Contact Now

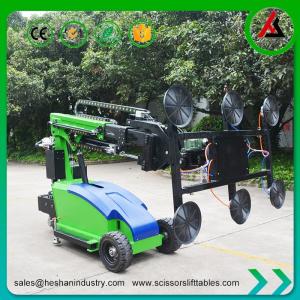

Battery Power Flat Arc Glass Or Curved Surface Glass Vacuum Lifter Glass Handler

A Vacuum Lifter is a type of material handling equipment that uses suction to lift and move heavy loads. It is commonly used in a variety of industries, including manufacturing, construction, and transportation. This device is designed to handle a wide range of items, including sheets of glass, metal plates, and large stone slabs, making it a versatile solution for many heavy-duty lifting tasks.

One of the key features of a Vacuum Lifter is its ease of use. The operator simply attaches the suction cups to the load and activates the vacuum, which securely holds the load in place. This eliminates the need for manual handling, reducing the risk of injury and increasing efficiency. Additionally, Vacuum Lifters can be fitted with a variety of suction cup sizes and shapes to accommodate different types of loads, further increasing their versatility.

Another advantage of using a Vacuum Lifter is increased safety. Unlike manual handling or the use of cranes, the vacuum eliminates the risk of dropping the load, as the suction cups will only release the load when the vacuum is intentionally turned off. This makes it an ideal solution for handling fragile and delicate items, such as glass sheets or stone slabs.

In conclusion, if you're looking for a safe and efficient way to handle heavy loads, a Vacuum Lifter may be the right choice for your operation. With its versatility, ease of use, and safety features, this material handling equipment can help you improve efficiency, reduce the risk of injury, and get the job done more effectively.

Specification:

Model Type	VGL300-3.5	VGL400-3.5	VGL500-3.7	VGL600-3.7	VGL800-4.5
Load Capacity	300kg (retract) 150kg (extend)	400kg (retract) 200kg (extend)	500kg (retract) 250kg (extend)	600kg (retract) 300kg (extend)	800kg (retract) 400kg (extend)
Lifting Height	3500mm	3500mm	3700mm	3700mm	4500mm
QTY of Suction Cap	4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap	Ø300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery	2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor	24V/1200W	24V/1200W	24V/1200W	24V/1200W	24V/1200W
Lifting Motor	24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/6L	24V/2000W/12L
Chassis L*W	2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm
Driving Wheel	Ø250x80mm	Ø250x80mm	Ø300x100mm	Ø300x100mm	Ø300x125mm
Packing Size(mm)	256010301700	256010301700	258010501700	258010501700	300012502300
N.W/G.W	1100/1150kg	1280/1330kg	1300/ 1350kg	1400/ 1450kg	1600/1650kg

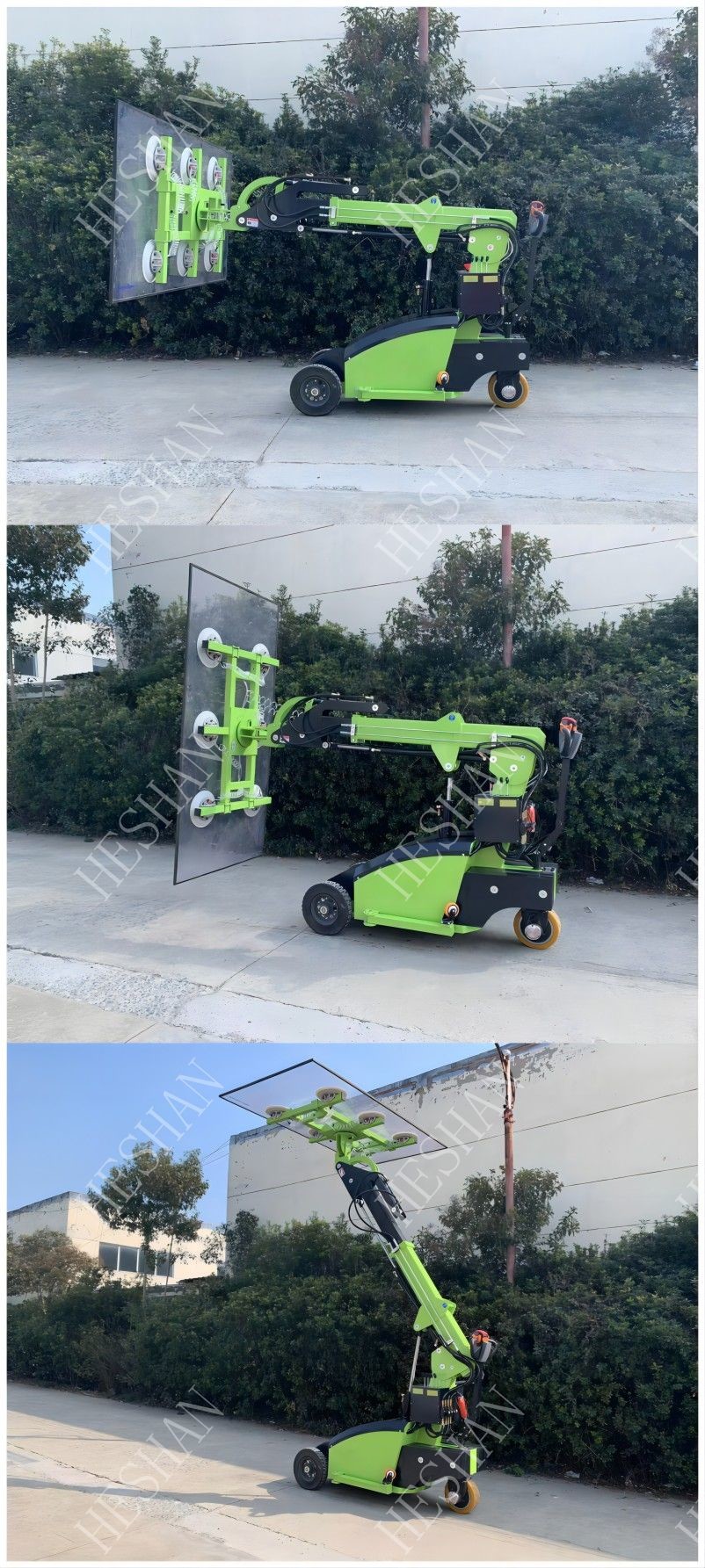

Battery Powered Vacuum Glass Lifting Device For Flat Arc Or Curved Surface Glass

Vacuum Glass Lifter has a versatile and flexible design, allowing it to handle glass panels of different sizes and shapes with ease. It can lift glass panels weighing up to several tons and can be customized to meet the specific requirements of different industries.

The equipment is equipped with advanced safety features, including an automatic shut-off system, overload protection, and a non-slip platform surface, ensuring that workers can operate safely and confidently at all times.

Product Tags:

Vacuum Glass Lifting Device

Flat Arc Glass Lifting Device

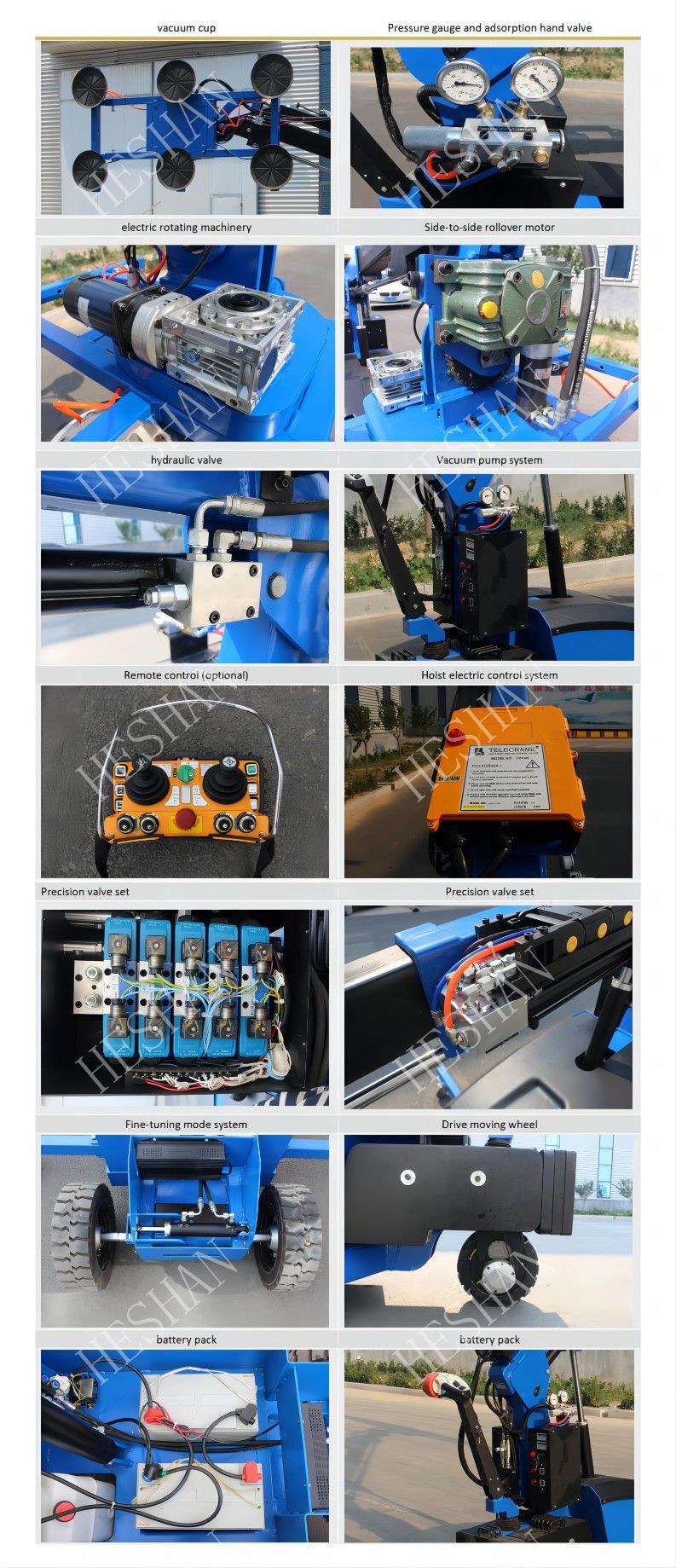

Battery Powered Vacuum Glass Lifting Device For Flat Arc Or Curved Surface Glass Images
